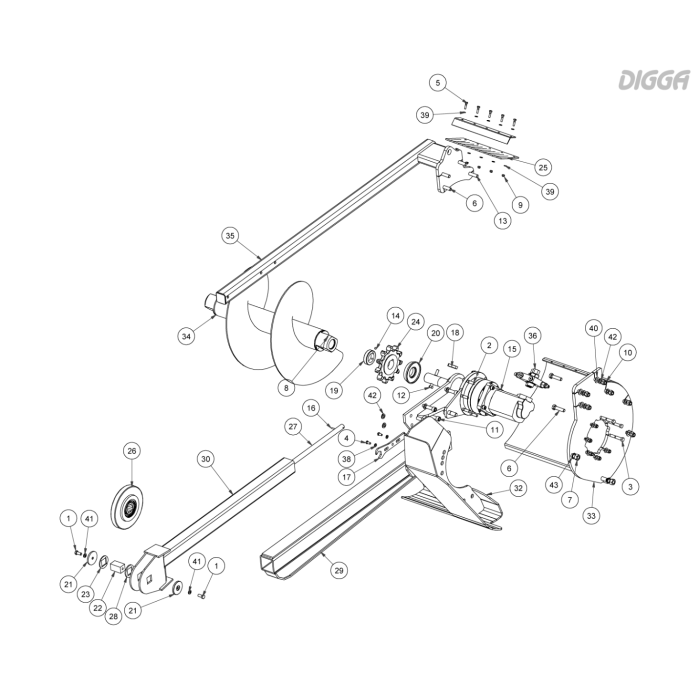

NO. PART NO. DESCRIPTION QTY
1 FA-000026

HEX BOLT

2 FA-000027

HEX BOLT

3 FA-000033

HEX BOLT

4 FA-000052

HEX BOLT

5 FA-000063

HEX BOLT

6 FA-000072

HEX BOLT

7 FA-000087

HEX NUT

8 FA-000090

NYLOC NUT

9 FA-000094

NYLOC NUT

10 FA-000095

NYLOC NUT

11 FA-000123

SCREW SOCKET HEAD CAP

12 FA-000152

HEX BOLT

13 FA-000205

HEX BOLT

14 FA-000400

SCREW SOCKET SET

15 GB-002703

GEARBOX ASSEMBLY

16 SP-000007

SPRING PIN

17 TR-000024

SPANNER

18 TR-000027

STEEL KEY

19 TR-000031

DRIVE SPROCKET COLLAR

20 TR-000046

SEAL PROTECTOR

21 TR-000050

NOSE ROLLER PIN WASHER

22 TR-000053

NOSE ROLLER SQUARE PIN

23 TR-000054

NOSE ROLLER SPACER

24 TR-000060

DRIVE SPROCKET

25 TR-000246

CHAIN RUBBER

26 TR-000871

NOSE ROLLER ASSEMBLY

27 TR-000915

BOOM ADJUSTER ROD

28 TR-000917

NOSE ROLLER SPACER

29 TR-001041

OUTER BOOM ASSEMBLY

30 TR-001047

INNER BOOM

31 TR-001362

CHAIN RUBBER RETAINING PLATE

32 TR-001407

SKID FOOT

33 TR-001413

MOTOR GUARD

34 TR-001428

SPOIL AUGER

35 TR-001448

DANGER BAR

36 VB-000070

DUAL RELIEF VALVE ASSEMBLY

37 WA-000001

WASHER

38 WA-000004

WASHER

39 WA-000005

WASHER

40 WA-000006

WASHER

41 WA-000010

SPRING WASHER

42 WA-000013

SPRING WASHER

43 WA-000020

SHAKE PROOF WASHER
